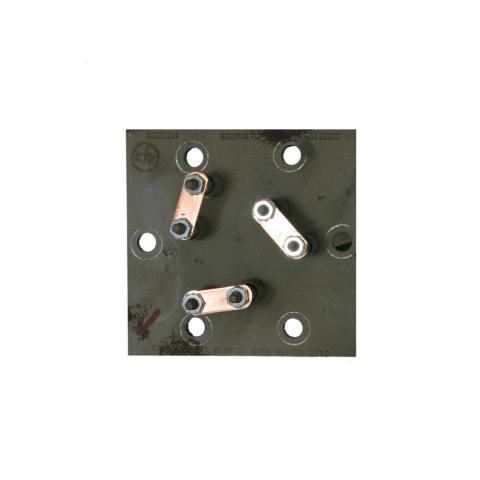

Mr. Steam Element, 12 KW 208V 3Ph, CU Series

Description

This 12KW 208V 3PH Heating Element is required for heating operation on Mr. Steam’s Commercial CU model steam bath generators that utilize 208VAC 3PH voltage. The Heating Element boils the tank water to build pressure and create steam.

This 12KW element is used with the following models and quantities (note: some steam bath generators use a combination of more than one (1) type of KW element. For example, a CU1250 takes 1 – 12KW and 1 – 18KW) CU500(1), CU1250(1), CU2000(1) CU1000(2) & CU2500(2)

Due to calcification and lime buildup, heating elements are a wear and tear item. Consider keeping a spare to reduce down time and have a routine preventative maintenance cleaning program in place.

NOTE: To preserve the originality, operation and safety of replacement parts, this product is not returnable.

Features

• compatible with CU models

Includes

• Heating element
• Element Gasket
• Bolts
• Washers and nuts
• Compound

Specifications
